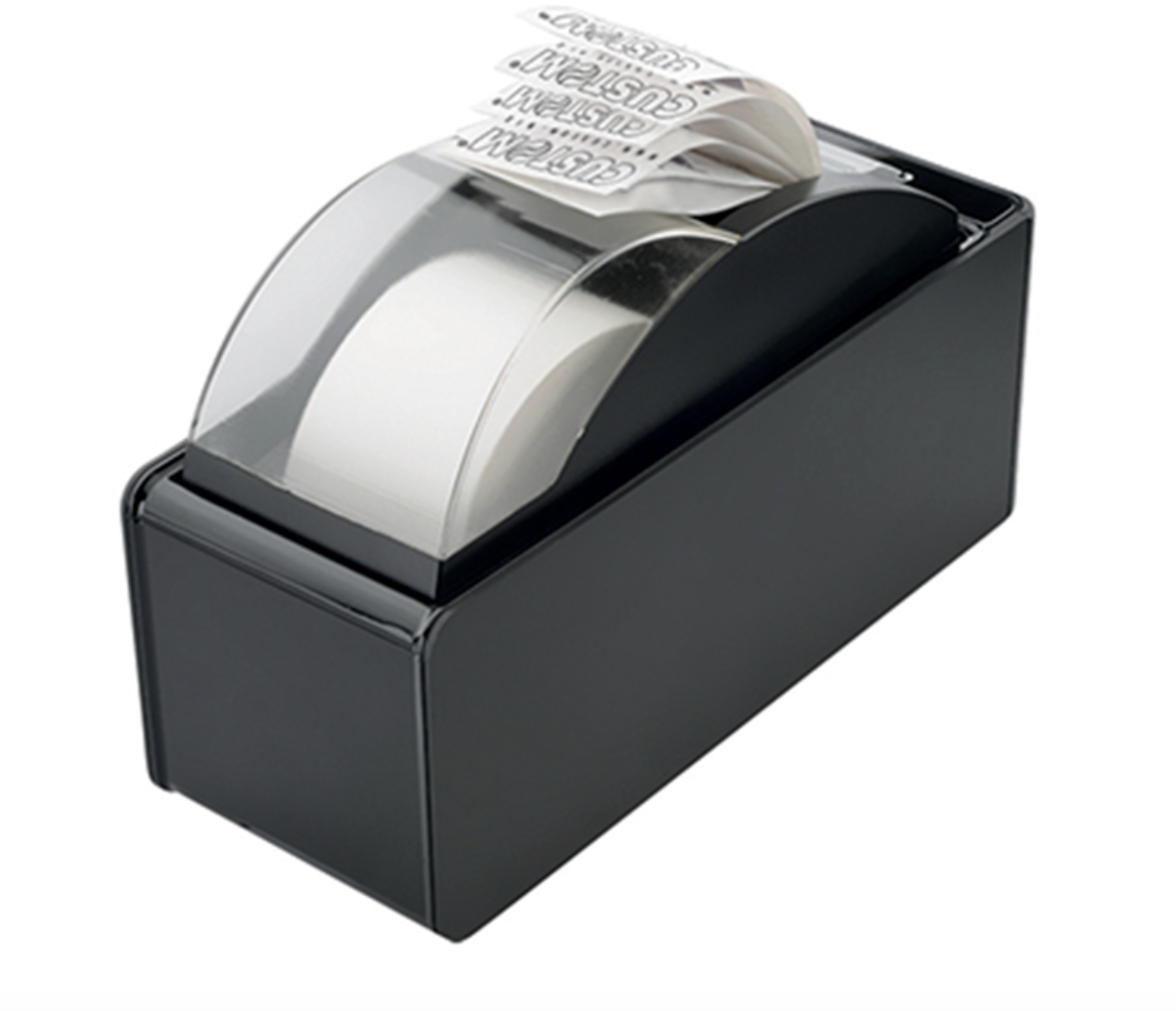

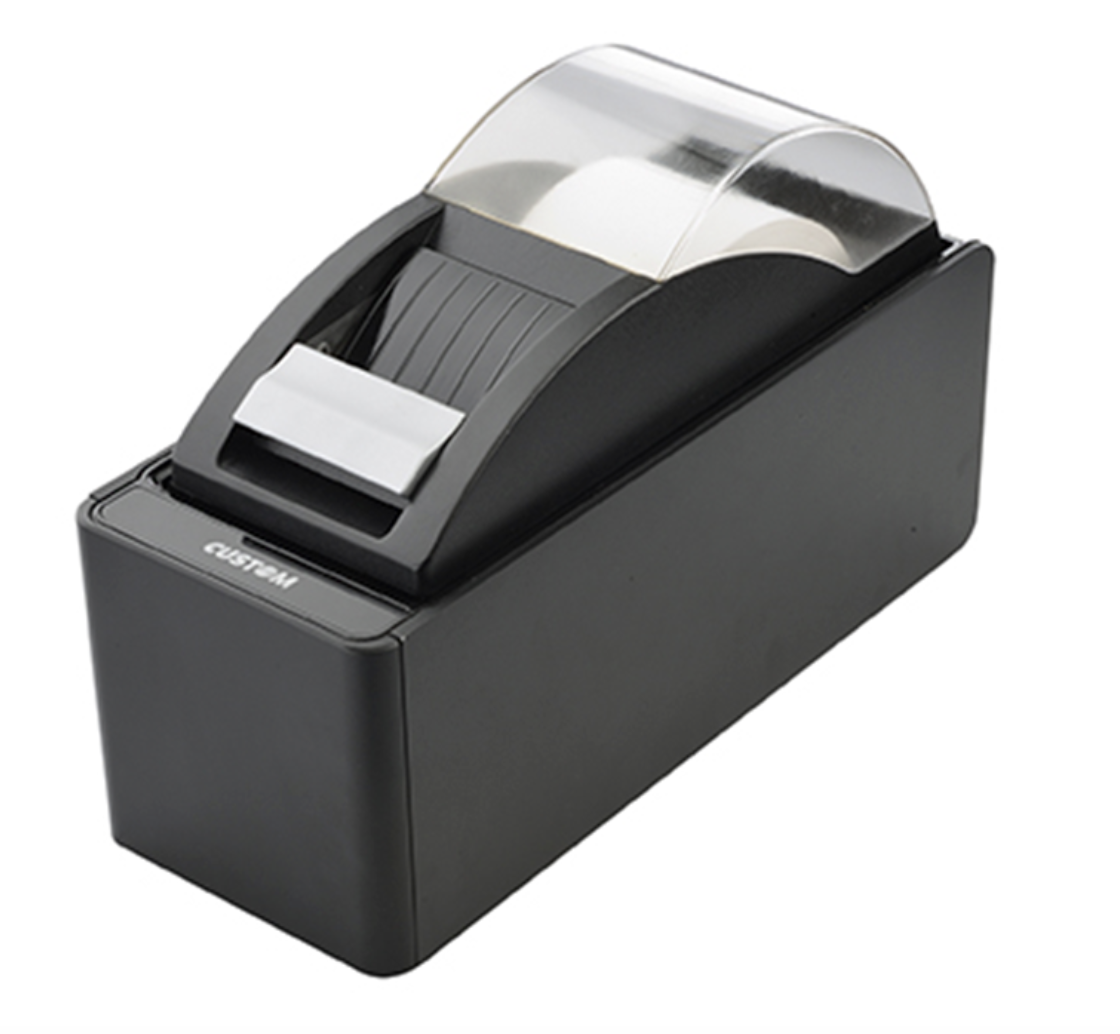

Impresora de Tickets Custom K3 Lottery

Printing Method

Thermal printing

Number of dots

8 dots / mm

Resolution

203 DPI

Printing (mm/sec)

250

Character set

PC437, PC850, PC860, PC863, PC865, PC858 (euro)

Supported barcode

UPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX, AZTEC, QRCODE, RSS

Printing Format

Normal, height and width from 1x to 8x, expanded, reverse, underlined, script

Printing Direction

Straight, 90°, 180°, 270°

Paper width

82.5mm

Paper thickness

from 71μm to 89μm

Paper weight

from 71g/m² to 86g/m²

Printing width

80mm

Roll Dimension

max Ø 200 mm (external)

Emulation

CUSTOM / POS

Interfaces

USB

Data Buffer

16 kB

Flash Memory

2 MB

RAM Memory

8 MB
